Home > Products > Capacitors > Trimmers, Variable Capacitors

Trimmers, Variable Capacitors

Manufacturers	Series	Packaging	Product Status	Capacitance Range	Adjustment Type	Voltage - Rated	Dielectric Material	Q @ Freq	Size / Dimension	Height - Seated (Max)	Operating Temperature	Mounting Type	Features
EW Electronics EXXELIA Knowles Johanson Manufacturing Knowles Voltronics KYOCERA AVX Murata Electronics Passive Plus Sprague-Goodman Tusonix a Subsidiary of CTS Electronic Components Vishay Beyschlag/Draloric/BC Components	* - 2807S 512 518 538 9350 A A1 A1_HV A2 A3 A4 A4_HV AIRTRIM® GAA A_HV BFC2 808 BFC2 809 Cera-Trim® CTZ, Kyocera E E_HV FILMTRIM® Giga-Trim® GKH H JR JZ JZ_HV K KE KE_HV K_HV LXRW NMA NMNT NMP NT P PISTONCAP® QM Sapphire Trimmers Seal-Trim® SGC3S SGNM-Series 1 SGNM-Series 2 SGNM-Series 3 SURFTRIM® GKG Thin-Trim® TM TP TZ03 TZB4 TZC3 TZR1 TZS2 TZV2 TZW4 TZY2	Bag Box Bulk Cut Tape (CT) Tape & Reel (TR) Tray	Active Discontinued at Masstock Electronics Obsolete	- 0.2 ~ 1pF 0.25 ~ 0.7pF 0.3 ~ 1.2pF 0.3 ~ 2.3pF 0.3 ~ 2pF 0.3 ~ 3pF 0.3 ~ 5pF 0.35 ~ 1.5pF 0.35 ~ 3.5pF 0.4 ~ 1.5pF 0.4 ~ 10pF 0.4 ~ 2.5pF 0.4 ~ 3.5pF 0.45 ~ 3 pF 0.45 ~ 3pF 0.45 ~ 4pF 0.5 ~ 1.3pF 0.5 ~ 15pF 0.5 ~ 1pF 0.5 ~ 2.5pF 0.5 ~ 3.5pF 0.5 ~ 4pF 0.5 ~ 5pF 0.5 ~ 8pF 0.55 ~ 1pF 0.6 ~ 1.8pF 0.6 ~ 10pF 0.6 ~ 11pF 0.6 ~ 12pF 0.6 ~ 14pF 0.6 ~ 15pF 0.6 ~ 1pF 0.6 ~ 2.5pF 0.6 ~ 2pF 0.6 ~ 3.5pF 0.6 ~ 4.5pF 0.6 ~ 4pF 0.6 ~ 5.5pF 0.6 ~ 5pF 0.6 ~ 6pF 0.6 ~ 7pF 0.6 ~ 8pF 0.6 ~ 9.5pF 0.6 ~ 9pF 0.65 ~ 2.5pF 0.7 ~ 1.5pF 0.7 ~ 20pF 0.7 ~ 9pF 0.8 ~ 10pF 0.8 ~ 12pF 0.8 ~ 13pF 0.8 ~ 14pF 0.8 ~ 16pF 0.8 ~ 18pF 0.8 ~ 20pF 0.8 ~ 21pF 0.8 ~ 23pF 0.8 ~ 25pF 0.8 ~ 30pF 0.8 ~ 38pF 0.8 ~ 4.5pF 0.8 ~ 5.5pF 0.8 ~ 5pF 0.8 ~ 7pF 0.8 ~ 8.5pF 0.8 ~ 8pF 1 ~ 10pF 1 ~ 11pF 1 ~ 120pF 1 ~ 12pF 1 ~ 14pF 1 ~ 15pF 1 ~ 16pF 1 ~ 2.5pF 1 ~ 20pF 1 ~ 22pF 1 ~ 23pF 1 ~ 24pF 1 ~ 25pF 1 ~ 28pF 1 ~ 3.5pF 1 ~ 30pF 1 ~ 36pF 1 ~ 3pF 1 ~ 4.5pF 1 ~ 42pF 1 ~ 4pF 1 ~ 52pF 1 ~ 55pF 1 ~ 5pF 1 ~ 60pF 1 ~ 6pF 1 ~ 75pF 1 ~ 90pF 1 ~ 9pF 1.2 ~ 3.5pF 1.2 ~ 4pF 1.2 ~ 5pF 1.25 ~ 2.3pF 1.4 ~ 3pF 1.4 ~ 5.5pF 1.5 ~ 10pF 1.5 ~ 14pF 1.5 ~ 15pF 1.5 ~ 19pF 1.5 ~ 20pF 1.5 ~ 30pF 1.5 ~ 3pF 1.5 ~ 4.5pF 1.5 ~ 40pF 1.5 ~ 48pF 1.5 ~ 4pF 1.5 ~ 55pF 1.5 ~ 5pF 1.6 ~ 5pF 1.8 ~ 10pF 1.8 ~ 4.5pF 1.8 ~ 9pF 10 ~ 100pF 10 ~ 120pF 10 ~ 150pF 10 ~ 50pF 10.5 ~ 50pF 100 ~ 200pF 12 ~ 180pf 12 ~ 60pF 15 ~ 60pF 16.5 ~ 33pF 18 ~ 300pF 18 ~ 300pF 2 ~ 10pF 2 ~ 120pF 2 ~ 12pF 2 ~ 130pF 2 ~ 13pF 2 ~ 15pF 2 ~ 18pF 2 ~ 19pF 2 ~ 210pF 2 ~ 250pF 2 ~ 25pF 2 ~ 30pF 2 ~ 34pF 2 ~ 46pF 2 ~ 5pF 2 ~ 64pF 2 ~ 6pF 2 ~ 7pF 2 ~ 95pF 2 ~ 96pF 2 ~ 9pF 2.3 ~ 18pF 2.5 ~ 10pF 2.5 ~ 11pF 2.5 ~ 15pF 2.5 ~ 20pF 2.5 ~ 22pF 2.5 ~ 6pF 2.5 ~ 70pF 2.5 ~ 9pF 2.6 ~ 18pF 2.7 ~ 10pF 2.7 ~ 20pF 25 ~ 600pF 3 ~ 10pF 3 ~ 11pF 3 ~ 12pF 3 ~ 15pF 3 ~ 18pF 3 ~ 20pF 3 ~ 22.5pF 3 ~ 23pF 3 ~ 33pF 3 ~ 40pF 3 ~ 55pF 3 ~ 60pF 3 ~ 6pF 3 ~ 75pF 3 ~ 8pF 3.5 ~ 10pF 3.5 ~ 20pF 3.5 ~ 27pF 30 ~ 60pF 4 ~ 18pF 4 ~ 20pF 4 ~ 25pF 4 ~ 27pF 4 ~ 30pF 4 ~ 38pF 4 ~ 40pF 4.2 ~ 20pF 4.5 ~ 20pF 4.5 ~ 30pF 4.5 ~ 40pF 4.5 ~ 50pF 45 ~ 90pF 5 ~ 15pF 5 ~ 18pF 5 ~ 20pF 5 ~ 25pF 5 ~ 57pF 5 ~ 60pF 5 ~ 85pF 5.2 ~ 30pF 5.5 ~ 18pF 5.5 ~ 20pF 5.5 ~ 25pF 5.5 ~ 30pF 5.5 ~ 40pF 5.5 ~ 50pF 5.5 ~ 65pF 5.8 ~ 20pF 6 ~ 25pF 6 ~ 35pF 6 ~ 50pF 6 ~ 80pF 6.5 ~ 25pF 6.5 ~ 30pF 6.5 ~ 70pF 6.8 ~ 45pF 7 ~ 100pF 7 ~ 18pF 7 ~ 25pF 7 ~ 40pF 7 ~ 50pF 7.5 ~ 18pF 7.5 ~ 24pF 7.5 ~ 50pF 8 ~ 25pF 8 ~ 29pF 8 ~ 30pF 8 ~ 40pF 8 ~ 45pF 8 ~ 50pF 8 ~ 80pF 8 ~ 90pF 8.5 ~ 25pF 8.5 ~ 40pF 9 ~ 100pF 9 ~ 35pF 9 ~ 90pF 9.8 ~ 60pF	- Bottom Bottom Adjustment Side Top Top and Bottom	- 100 V 1000 V 125 V 1250 V 150 V 1500 V 200 V 2000 V 25 V 250 V 2500 V 3.5 kV 300 V 3000 V 350 V 4 kV 400 V 4000 V 4500 V 50 V 500 V 6.4 kV 600 V 6000 V 750 V 7500 V 8.75 kV 8750 V	- Air Alumina Ceramic Glass Polycarbonate (PC) Polyester, Polyethylene Terephthalate (PET) Polyethylene (PE) Polypropylene (PP) Polytetrafluoroethylene (PTFE) Quartz Sapphire Zirconia	- 100 @ 1MHz 1000 @ 100MHz 1000 @ 10MHz 1000 @ 175MHz 1000 @ 1MHz 1000 @ 200MHz 1000 @ 20MHz 1000 @ 250MHz 10000 @ 100MHz 1250 @ 250MHz 1400 @ 195MHz 150 @ 1MHz 1500 @ 100MHz 1500 @ 1MHz 1500 @ 20MHz 1500 @ 213MHz 1500 @ 250MHz 1500 @ 25MHz 1700 @ 25MHz 1800 @ 25MHz 200 @ 100MHz 200 @ 1MHz 200 @ 200MHz 200 @ 500MHz 2000 @ 100MHz 2000 @ 1MHz 2000 @ 237MHz 2000 @ 250MHz 2000 @ 25MHz 2200 @ 25MHz 250 @ 100MHz 250 @ 1MHz 250 @ 20MHz 300 @ 100MHz 300 @ 1MHz 3000 @ 100MHz 3000 @ 250MHz 3000 @ 25MHz 350 @ 1MHz 350 @ 20MHz 3500 @ 25MHz 4000 @ 100MHz 4000 @ 195MHz 4000 @ 250MHz 500 @ 100MHz 500 @ 1MHz 500 @ 20MHz 500 @ 25MHz 5000 @ 100MHz 5000 @ 250MHz 550 @ 20MHz 600 @ 100MHz 600 @ 1MHz 600 @ 25MHz 650 @ 1MHz 650 @ 25MHz 700 @ 100MHz 700 @ 1MHz 700 @ 20MHz 700 @ 25MHz 7000 @ 25MHz 750 @ 100MHz 750 @ 1MHz 7500 @ 100MHz 780 @ 100MHz 800 @ 100MHz 800 @ 175MHz 800 @ 1MHz 800 @ 20MHz 800 @ 25MHz 900 @ 1MHz 900 @ 20MHz 9000 @ 100MHz 9000 @ 25MHz	- 0.024" L x 0.024" W (0.60mm x 0.60mm) 0.051" L x 0.035" W (1.30mm x 0.90mm) 0.063" Dia (1.60mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.075" Dia (1.90mm) 0.091" Dia (2.30mm) 0.094" Dia (2.39mm) 0.106" L x 0.087" W (2.70mm x 2.20mm) 0.114" Dia (2.90mm) 0.118" Dia (3.00mm) 0.120" Dia (3.05mm) 0.125" Dia (3.18mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.091" W (3.20mm x 2.30mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.130" Dia (3.30mm) 0.138" L x 0.122" W (3.50mm x 3.10mm) 0.140" (3.56mm) Dia 0.140" Dia (3.56mm) 0.141" Dia (3.58mm) 0.145" Dia (3.68mm) 0.150" Dia (3.81mm) 0.154" Dia (3.91mm) 0.156" Dia (3.96mm) 0.160" Dia (4.06mm) 0.161" Dia (4.10mm) 0.176" L x 0.130" W (4.47mm x 3.30mm) 0.177" L x 0.126" W (4.50mm x 3.20mm) 0.177" L x 0.157" W (4.50mm x 4.00mm) 0.180" Dia (4.57mm) 0.180" L x 0.167" W (4.57mm x 4.24mm) 0.185" (4.70mm) Dia 0.190" Dia (4.83mm) 0.197" Dia (5.00mm) 0.200" Dia (5.08mm) 0.205" L x 0.165" W (5.20mm x 4.20mm) 0.210" Dia (5.33mm) 0.217" L x 0.197" W (5.50mm x 5.00mm) 0.218" Dia (5.54mm) 0.220" Dia (5.59mm) 0.225" Dia (5.72mm) 0.230" Dia (5.84mm) 0.235" Dia (5.97mm) 0.236" Dia (6.00mm) 0.240" Dia (6.10mm) 0.250" Dia (6.35mm) 0.270" Dia (6.86mm) 0.275" Dia (6.99mm) 0.280" Dia (7.11mm) 0.283" L x 0.213" W (7.20mm x 5.40mm) 0.290" L x 0.190" W (7.37mm x 4.83mm) 0.291" L x 0.264" W (7.40mm x 6.70mm) 0.295" Dia (7.49mm) 0.299" Dia (7.60mm) 0.300" Dia (7.62mm) 0.303" Dia (7.62mm) 0.310" Dia (7.87mm) 0.311" Dia (7.90mm) 0.312" Dia (7.92mm) 0.335" Dia (8.50mm) 0.335" L x 0.295" W (8.50mm x 7.50mm) 0.340" Dia (8.64mm) 0.346" L x 0.315" W (8.80mm x 8.00mm) 0.360" Dia (9.14mm) 0.365" Dia (9.27mm) 0.370" Dia (9.40mm) 0.375" Dia (9.52mm) 0.375" Dia (9.53mm) 0.380" Dia (9.65mm) 0.390" Dia (9.91mm) 0.394" Dia (10.00mm) 0.402" L x 0.402" W (10.20mm x 10.20mm) 0.429" L x 0.413" W (10.90mm x 10.50mm) 0.433" Dia (11.00mm) 0.433" L x 0.374" W (11.00mm x 9.50mm) 0.490" L x 0.250" W (12.45mm x 6.35mm) 0.525" Dia (13.34mm) 0.540" Dia (13.72mm) 0.550" Dia (13.97mm) 0.551" L x 0.453" W (14.00mm x 11.50mm) 0.560" L x 0.440" W (14.22mm x 11.18mm) 0.580" Dia (14.73mm) 0.610" L x 0.440" W (15.49mm x 11.18mm) 0.630" Dia (16.00mm) 0.670" Dia (17.02mm) 0.700" Dia (17.78mm) 0.709" L x 0.610" W (18.00mm x 15.50mm) 0.710" Dia (18.03mm) 0.750" Dia (19.05mm) 0.760" L x 0.160" W (19.30mm x 4.06mm) 0.980" Dia (24.89mm) 1.060" Dia (26.92mm) 1.130" Dia (28.70mm) 1.500" Dia (38.10mm) 1.630" Dia (41.40mm) 3.000" Dia (76.20mm)	- 0.011" (0.28mm) 0.012" (0.30mm) 0.017" (0.43mm) 0.024" (0.60mm) 0.035" (0.90mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.045" (1.15mm) 0.047" (1.20mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.54mm) 0.067" (1.70mm) 0.071" (1.80mm) 0.085" (2.16mm) 0.086" (2.18mm) 0.087" (2.20mm) 0.090" (2.28mm) 0.090" (2.29mm) 0.094" (2.40mm) 0.100" (2.54mm) 0.100" (2.55mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.110" (2.79mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.145" (3.68mm) 0.160" (4.06mm) 0.197" (5.00mm) 0.209" (5.30mm) 0.220" (5.59mm) 0.225" (5.72mm) 0.228" (5.80mm) 0.230" (5.80mm) 0.230" (5.84mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.250" (6.35mm) 0.260" (6.60mm) 0.270" (6.86mm) 0.275" (6.99mm) 0.280" (7.11mm) 0.290" (7.37mm) 0.295" (7.49mm) 0.297" (7.54mm) 0.300" (7.62mm) 0.310" (7.87mm) 0.310" (7.90mm) 0.312" (7.92mm) 0.314" (7.98mm) 0.315" (8.00mm) 0.325" (8.26mm) 0.329" (8.36mm) 0.330" (8.38mm) 0.340" (8.64mm) 0.354" (9.00mm) 0.359" (9.12mm) 0.360" (9.13mm) 0.370" (9.40mm) 0.375" (9.53mm) 0.378" (9.60mm) 0.380" (9.65mm) 0.383" (9.73mm) 0.390" (9.91mm) 0.391" (9.93mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.410" (10.41mm) 0.420" (10.67mm) 0.433" (11.00mm) 0.440" (11.18mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.460" (11.68mm) 0.469" (11.91mm) 0.470" (11.94mm) 0.470" (12.00mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.480" (12.20mm) 0.484" (12.30mm) 0.488" (12.40mm) 0.490" (12.45mm) 0.495" (12.57mm) 0.500" (12.70mm) 0.510" (12.95mm) 0.520" (13.21mm) 0.530" (13.46mm) 0.540" (13.72mm) 0.550" (13.97mm) 0.560" (14.22mm) 0.562" (14.27mm) 0.570" (14.48mm) 0.580" (14.73mm) 0.600" (15.24mm) 0.609" (15.47mm) 0.610" (15.49mm) 0.620" (15.75mm) 0.630" (16.00mm) 0.641" (16.28mm) 0.656" (16.66mm) 0.660" (16.76mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.680" (17.27mm) 0.690" (17.53mm) 0.696" (17.70mm) 0.700" (17.78mm) 0.703" (17.86mm) 0.730" (18.54mm) 0.745" (18.92mm) 0.750" (19.05mm) 0.760" (19.30mm) 0.770" (19.56mm) 0.780" (19.81mm) 0.795" (20.19mm) 0.810" (20.57mm) 0.812" (20.62mm) 0.830" (21.08mm) 0.840" (21.34mm) 0.843" (21.41mm) 0.850" (21.59mm) 0.860" (21.84mm) 0.870" (22.10mm) 0.910" (23.11mm) 0.920" (23.37mm) 0.930" (23.62mm) 0.940" (23.88mm) 0.950" (24.13mm) 0.960" (24.38mm) 0.970" (24.64mm) 0.980" (24.89mm) 0.984" (24.99mm) 1.000" (25.40mm) 1.030" (26.16mm) 1.031" (26.19mm) 1.050" (26.67mm) 1.060" (26.92mm) 1.080" (27.43mm) 1.090" (27.69mm) 1.109" (28.17mm) 1.130" (28.70mm) 1.140" (28.96mm) 1.150" (29.21mm) 1.160" (29.46mm) 1.170" (29.72mm) 1.210" (30.73mm) 1.220" (30.99mm) 1.240" (31.50mm) 1.359" (34.52mm) 1.360" (34.54mm) 1.400" (35.56mm) 1.420" (36.07mm) 1.440" (36.58mm) 1.450" (36.83mm) 1.460" (37.08mm) 1.468" (37.29mm) 1.480" (37.59mm) 1.609" (40.87mm) 1.610" (40.89mm) 1.620" (41.15mm) 1.630" (41.40mm) 1.640" (41.66mm) 1.656" (42.06mm) 1.660" (42.16mm) 1.670" (42.42mm) 1.690" (42.93mm) 1.700" (43.18mm) 1.730" (43.94mm) 1.750" (44.45mm) 1.760" (44.70mm) 1.770" (44.96mm) 1.830" (46.48mm) 1.845" (46.86mm) 1.850" (46.99mm) 1.870" (47.50mm) 1.953" (49.61mm) 1.980" (50.29mm) 2.000" (50.80mm) 2.030" (51.56mm) 2.080" (52.83mm) 2.250" (57.15mm) 2.500" (63.50mm) 3.000" (76.20mm) 3.250" (82.55mm) 3.500" (88.90mm) 4.250" (107.95mm) 4.500" (114.30mm)	- -25°C ~ 85°C -30°C ~ 85°C -40°C ~ 125°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 200°C -65°C ~ 125°C	- Chassis Mount Panel Mount Surface Mount Through Hole User Defined	- General Purpose Low Profile Low Profile, Non-Magnetic Non-Magnetic Non-Magnetic, Sealed Sealed Voltage Tuning

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Capacitance Range	Adjustment Type	Voltage - Rated	Dielectric Material	Q @ Freq	Size / Dimension	Height - Seated (Max)	Operating Temperature	Mounting Type	Features
27273 CAP TRIMMER 0.6-4.5PF 500V SMD Knowles Johanson Manufacturing	709	-	RFQ	Datasheet	Giga-Trim®	Bulk	Active	0.6 ~ 4.5pF	Top	500 V	Sapphire	3000 @ 250MHz	0.140" Dia (3.56mm)	0.314" (7.98mm)	-65°C ~ 125°C	Surface Mount	General Purpose
27273-3R5 CAP TRIMMER 0.6-4.5PF 500V SMD Knowles Johanson Manufacturing	1,545	-	RFQ	Datasheet	Giga-Trim®	Tape & Reel (TR)	Active	0.6 ~ 4.5pF	Top	500 V	Sapphire	3000 @ 250MHz	0.140" Dia (3.56mm)	0.314" (7.98mm)	-65°C ~ 125°C	Surface Mount	General Purpose
57273-1 CAP TRIMMER 0.8-8PF 500V SMD Knowles Johanson Manufacturing	175	-	RFQ	Datasheet	Giga-Trim®	Bulk	Active	0.8 ~ 8pF	Top	500 V	Zirconia	2000 @ 100MHz	0.150" Dia (3.81mm)	0.330" (8.38mm)	-65°C ~ 125°C	Surface Mount	General Purpose
27293 CAP TRIMMER 0.8-8PF 500V SMD Knowles Johanson Manufacturing	369	-	RFQ	Datasheet	Giga-Trim®	Bulk	Active	0.8 ~ 8pF	Top	500 V	Sapphire	3000 @ 100MHz	0.140" Dia (3.56mm)	0.480" (12.19mm)	-65°C ~ 125°C	Surface Mount	General Purpose
27291SL CAP TRIMMER 0.8-8PF 500V SMD Knowles Johanson Manufacturing	541	-	RFQ	Datasheet	Giga-Trim®	Bulk	Active	0.8 ~ 8pF	Side	500 V	Sapphire	3000 @ 100MHz	0.140" Dia (3.56mm)	-	-65°C ~ 125°C	Surface Mount	General Purpose
5501 CAP TRIMMER 1-20PF 250V TH Knowles Johanson Manufacturing	171	-	RFQ	Datasheet	-	Bulk	Active	1 ~ 20pF	Side	250 V	Air	1500 @ 100MHz	0.295" Dia (7.49mm)	-	-65°C ~ 125°C	Through Hole	Sealed
5502 CAP TRIMMER 1-20PF 250V PNL MNT Knowles Johanson Manufacturing	102	-	RFQ	Datasheet	-	Bulk	Active	1 ~ 20pF	Top	250 V	Air	1500 @ 100MHz	0.280" Dia (7.11mm)	-	-65°C ~ 125°C	Panel Mount	Sealed
AJ25HV CAP TRIMMER 1-23PF 750V SMD Knowles Voltronics	535	-	RFQ	Datasheet	-	Bulk	Active	1 ~ 23pF	Side	750 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.250" Dia (6.35mm)	0.500" (12.70mm)	-65°C ~ 125°C	Surface Mount	General Purpose
8052 CAP TRIMMER 0.8-10PF 250V TH Knowles Johanson Manufacturing	1,767	-	RFQ	Datasheet	-	Bulk	Active	0.8 ~ 10pF	Top	250 V	Air	5000 @ 100MHz	0.295" Dia (7.49mm)	-	-65°C ~ 125°C	Through Hole	General Purpose
5602 CAP TRIMMER 1-30PF 250V PNL MNT Knowles Johanson Manufacturing	194	-	RFQ	Datasheet	-	Bulk	Active	1 ~ 30pF	Top	250 V	Air	800 @ 100MHz	0.280" Dia (7.11mm)	-	-65°C ~ 125°C	Panel Mount	Sealed
AM15HV CAP TRIMMER 1-16PF 1000V SMD Knowles Voltronics	2,765	-	RFQ	Datasheet	A_HV	Bulk	Active	1 ~ 16pF	Top	1000 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.300" Dia (7.62mm)	0.480" (12.19mm)	-65°C ~ 125°C	Surface Mount	General Purpose

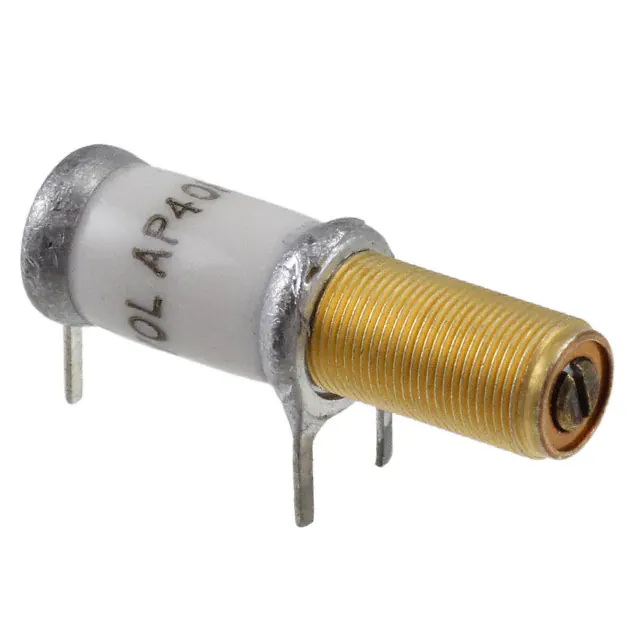

AP40HV CAP TRIMMER 1.5-40PF 1000V TH Knowles Voltronics	1,163	-	RFQ	Datasheet	-	Bulk	Active	1.5 ~ 40pF	Side	1000 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.220" Dia (5.59mm)	1.000" (25.40mm)	-65°C ~ 125°C	Through Hole	General Purpose
A1M8HV CAP TRIMMER 0.5-8PF 500V SMD Knowles Voltronics	2,697	-	RFQ	Datasheet	-	Bulk	Active	0.5 ~ 8pF	Top	500 V	Polytetrafluoroethylene (PTFE)	3000 @ 100MHz	0.160" Dia (4.06mm)	0.260" (6.60mm)	-65°C ~ 125°C	Surface Mount	General Purpose

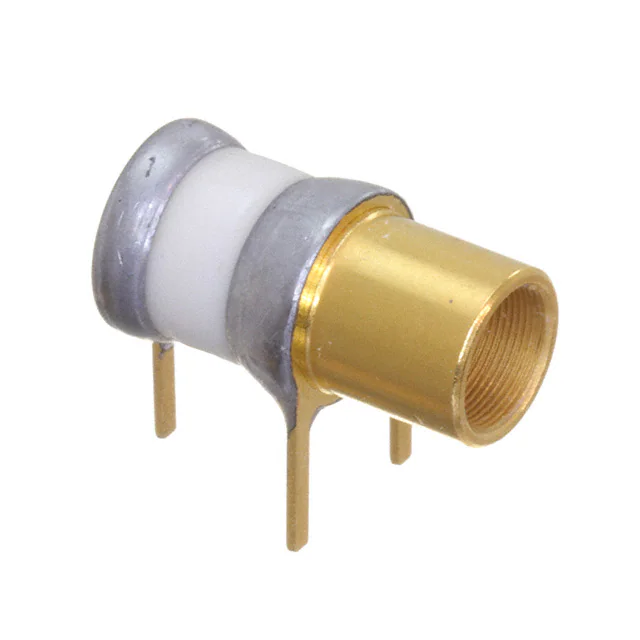

52H01 CAP TRIMMER 1.5-10PF 1250V TH Knowles Johanson Manufacturing	256	-	RFQ	Datasheet	-	Bulk	Active	1.5 ~ 10pF	Side	1250 V	-	1400 @ 195MHz	0.295" Dia (7.49mm)	-	-65°C ~ 125°C	Through Hole	Non-Magnetic
AT10-4 CAP TRIM 0.8-10PF 2000V PNL MNT Knowles Voltronics	136	-	RFQ	Datasheet	-	Bulk	Active	0.8 ~ 10pF	Top	2000 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.280" Dia (7.11mm)	0.660" (16.76mm)	-65°C ~ 125°C	Panel Mount	General Purpose
55H01 CAP TRIMMER 1.5-19PF 1000V TH Knowles Johanson Manufacturing	598	-	RFQ	Datasheet	-	Bulk	Active	1.5 ~ 19pF	Side	1000 V	-	1000 @ 175MHz	0.295" Dia (7.49mm)	-	-65°C ~ 125°C	Through Hole	Non-Magnetic
V9000 CAP TRIMMER 1-12PF 2000V SMD Knowles Voltronics	147	-	RFQ	Datasheet	-	Bulk	Active	1 ~ 12pF	Side	2000 V	Sapphire	3000 @ 100MHz	-	0.470" (11.94mm)	-55°C ~ 125°C	Surface Mount	Non-Magnetic
NMAJ25HV CAP TRIMMER 1-23PF 750V SMD Knowles Voltronics	29	-	RFQ	Datasheet	A_HV	Bulk	Active	1 ~ 23pF	Side	750 V	Polytetrafluoroethylene (PTFE)	2000 @ 100MHz	0.300" Dia (7.62mm)	0.500" (12.70mm)	-65°C ~ 125°C	Surface Mount	Non-Magnetic
GKG50015 CAP TRIMMER 10-50PF 100V TH EW Electronics	7,988	-	RFQ	Datasheet	SURFTRIM® GKG	Bulk	Active	10 ~ 50pF	Top	100 V	Ceramic	200 @ 1MHz	0.236" Dia (6.00mm)	0.197" (5.00mm)	-25°C ~ 85°C	Through Hole	General Purpose
GKG3R015 CAP TRIMMER 1-3PF 100V TH EW Electronics	4,432	-	RFQ	Datasheet	SURFTRIM® GKG	Bulk	Active	1 ~ 3pF	Top	100 V	Ceramic	300 @ 1MHz	0.236" Dia (6.00mm)	0.197" (5.00mm)	-25°C ~ 85°C	Through Hole	General Purpose

Total 1700 Record«Prev 1 234 5 6...85 Next»

Category Overview

Trimmers, Variable Capacitors Products & Selection Guide

Trimmers, Variable Capacitors are widely used in industrial automation, automotive electronics, communication equipment, consumer electronics, new energy systems, and many other electronic applications. We offer products from multiple manufacturers, packages, and specifications to help engineers and buyers compare and source suitable components.

Use the manufacturer, key specification, availability, and Datasheet filters to narrow down the right Trimmers, Variable Capacitors. If the exact part is not listed, submit an inquiry and our team can help check stock, lead time, and suitable alternatives.

FAQ

How do I choose the right Trimmers, Variable Capacitors?

Start with the required electrical specifications, package, operating temperature, application conditions, and manufacturer preference, then compare availability and lead time.

Can I order based on the stock shown on this page?

Inventory can change with supply conditions. For project or volume requirements, please submit an inquiry so current stock, pricing, and lead time can be confirmed.

What if the exact part number I need is not listed?

Send us the part number and required quantity. We can help source hard-to-find parts and suggest suitable alternatives based on key specifications.

Do you provide Datasheets and technical documents?

Yes. Use the Datasheet links in the product list to view available technical documents. If a document is unavailable, contact us and we can help check it.
