Keypad Switches

Manufacturers	Series	Packaging	Product Status	Switch Type	Number of Keys	Matrix (Columns x Rows)	Illumination	Legend Type	Key Type	Output Type	Legend	Legend Color	Key Color	Mounting Type	Termination Style	Panel Cutout Dimensions	Operating Temperature	Ingress Protection	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Features
Adafruit Industries LLC APEM Inc. Blink Marine CANADUINO® EAO Gearbox Labs Grayhill Inc. knitter-switch Marlin Technologies NKK Switches Parallax Inc. Pimoroni Ltd SparkFun Electronics Storm Interface	* - 09 1000 1000 PLX 2000 3000 37F 3K 4000 5000 6000 700 720 BLK 720 GFX 720 GFX-i 720 TFX 720 TFX-i 82 83 84 84B 84BL 84LS 84R 84S 86 87 88 900 96 AudioComm AXS AXS-COM FLETAS FM GFX GFX Illuminator Nav-Bar™ NAV-Pad™ PZ SF6000 StrikeMaster ES VR Illuminator YFT KNI	- Box Bulk Tray Tube	Active Discontinued at Masstock Electronics Obsolete	- Capacitive Conductive Rubber Keyswitch Membrane (Snap Dome) Piezo Snap Dome	- 1 12 15 16 2 20 3 36 4 5 6 8	- 1 x 1 1 x 4 2 x 1 2 x 4 3 x 1 3 x 2 3 x 4 4 x 1 4 x 2 4 x 4 4 x 5 5 x 1 5 x 3 5 x 4 6 x 1	- Illuminated Illuminated - Amber Illuminated - Blue Illuminated - Green Illuminated - Light Source Not Included Illuminated - Orange Illuminated - Red Illuminated - Red/Green Illuminated - White Illuminated - Yellow Non-Illuminated	- Fixed Interchangeable Partially Interchangeable	- Metal Polyester Overlay Polymer Polymer, Transparent Key Cap Rubber Overlay Tempered Glass Transparent Key Cap	- CAN Bus (CANopen) CAN Bus (J1939) Common Bus Independent Switches (3PST) Independent Switches (4PST) Independent Switches (DPST) Independent Switches (SPST) Matrix Non-Standard (Controller Included) Non-Standard (Controller Needed) USB Wiegand™	- 0 ~ 9, A ~ F 1 ~ 4 1 ~ 6 1 ~ 8 A ~ D Arrows Arrows, Help Button Arrows, Help Button, Select Blank Buttons Calculator Format Calculator Format, A ~ C Color Coded Format Customizable (Included) Customizable (Sold Separate) F1 ~ F4 No Buttons No Legend Targets Telephone Format Telephone Format (Horizontal) Telephone Format, A ~ C Telephone Format, A ~ D Telephone Format, A ~ F Telephone Format, Color Coded Format Telephone Format, Function Keys	- Black Black, Blue Black, White Blue, White Gray Translucent White	- Black Blue Blue, Red Blue, White Clear Gray Multiple Red Silver Translucent Transparent White	- Adhesive Panel Mount, Front Panel Mount, Front or Rear Panel Mount, Rear Through Hole	- Cable with Connector Card Edge/Solder Pad Connector PC Pin Pin Header Screw Terminal Stud USB Socket	- Circular - 40.64mm Dia Circular - 46.99mm Dia Circular - 57.15mm Dia Rectangular - 100.50mm x 67.20mm Rectangular - 107.10mm x 68.80mm Rectangular - 109.50mm x 95.50mm Rectangular - 115.00mm x 109.50mm Rectangular - 169.00mm x 111.00mm Rectangular - 68.58mm x 50.80mm Rectangular - 68.58mm x 63.50mm Rectangular - 74.00mm x 54.00mm Rectangular - 81.00mm x 61.00mm Rectangular - 81.50mm x 62.50mm Rectangular - 82.50mm x 25.50mm Rectangular - 83.00mm x 64.00mm Rectangular - 83.57mm x 64.52mm Rectangular - 90.00mm x 88.00mm Rectangular - 97.00mm x 79.00mm Square - 83.00mm² Square - 83.57mm²	- -10°C ~ 75°C -10°C ~ 85°C -15°C ~ 50°C -15°C ~ 55°C -20°C ~ 60°C -20°C ~ 70°C -25°C ~ 85°C -30°C ~ 80°C -40°C ~ 100°C -40°C ~ 60°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 85°C 0°C ~ 70°C	- IP40 IP42 IP54 - Dust Protected, Water Resistant IP65 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof IP68 - Dust Tight, Waterproof IP69K - Dust Tight, High Temp Water Jets, Waterproof IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof	- 1.8, 2.2 VDC 1.95 VDC 2.1 VDC 3.3 VDC 3.5 VDC 5 VDC	- 0.005A @ 12VDC 0.01A @ 24VDC 0.02A @ 24VDC 0.02A @ 50VDC 0.03A @ 32VDC 0.05A @ 24VDC 0.05A @ 30VAC/DC 0.1A @ 24VDC 0.1A @ 5VDC 0.2A @ 24VDC 2A @ 24VAC/DC 3A @ 120VAC	- Anti-Vandal Anti-Vandal, Display Audio Enabled Black Housing Display Gray Housing Shielded

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Switch Type	Number of Keys	Matrix (Columns x Rows)	Illumination	Legend Type	Key Type	Output Type	Legend	Legend Color	Key Color	Mounting Type	Termination Style	Panel Cutout Dimensions	Operating Temperature	Ingress Protection	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Features
EZB2-405H03 SWITCH KEYPAD 2KEY ILLUM Storm Interface	7	-	RFQ	Datasheet	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
8616-410023 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	11	-	RFQ	Datasheet	SF6000	Box	Active	Conductive Rubber	16	4 x 4	Illuminated	Fixed	Transparent Key Cap	Matrix	Telephone Format, Function Keys	Black	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 97.00mm x 79.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	5 VDC	0.05A @ 24VDC	-

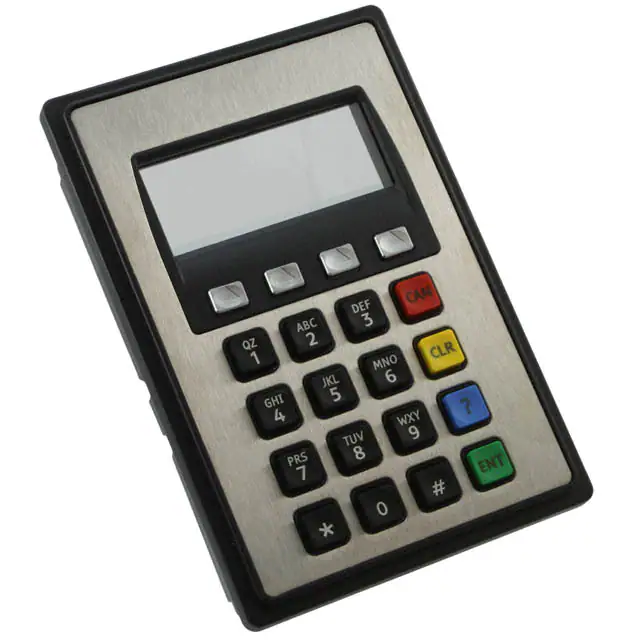

FT2K0503 SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface	12	-	RFQ	Datasheet	5000	Bulk	Active	Conductive Rubber	20	4 x 5	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, Function Keys	Black, White	Multiple	Panel Mount, Rear	Pin Header	Rectangular - 169.00mm x 111.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	-
EZ06-23001 SWITCH KEYPAD 6KEY NON-ILLUM Storm Interface	9	-	RFQ	Datasheet	NAV-Pad™	Bulk	Active	Conductive Rubber	6	-	Non-Illuminated	Fixed	Polymer	USB	Arrows, Help Button	Black, White	Multiple	Panel Mount, Front or Rear	USB Socket	Rectangular - 109.50mm x 95.50mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
AT02-430013 SWITCH KEYPAD 2KEY ILLUM Storm Interface	10	-	RFQ	Datasheet	AudioComm	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	USB	-	-	White	Panel Mount, Front	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
EZB6-730023 SWITCH KEYPAD 6KEY ILLUM Storm Interface	8	-	RFQ	Datasheet	Nav-Bar™	Bulk	Active	Conductive Rubber	6	6 x 1	Illuminated	Fixed	Polymer	USB	Arrows, Help Button, Select	Black, White	Multiple	Panel Mount, Rear	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled
DE1KT103 SWITCH KEYPAD 12KEY NON-ILLUM Storm Interface	10	-	RFQ	Datasheet	AXS	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Fixed	Metal	Non-Standard (Controller Included)	Telephone Format	Black	Silver	Panel Mount, Front	Screw Terminal	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Anti-Vandal
3K120103 SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface	32	-	RFQ	Datasheet	3000	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Calculator Format	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 83.00mm x 64.00mm	-10°C ~ 85°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
3K160103 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	15	-	RFQ	Datasheet	3000	Bulk	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Calculator Format, A ~ C	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Square - 83.00mm²	-10°C ~ 85°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
83AB1-102 SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc.	95	-	RFQ	Datasheet	83	Bulk	Active	Snap Dome	12	3 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format	Black	White	Panel Mount, Front	Pin Header	-	-40°C ~ 80°C	-	-	0.01A @ 24VDC	-
2K042103 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	6	-	RFQ	Datasheet	2000	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Polymer	Matrix	F1 ~ F4	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
PLX041203 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	72	-	RFQ	Datasheet	1000 PLX	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Metal	Matrix	Arrows	Black	Silver	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-40°C ~ 100°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
EZB2-405003 SWITCH KEYPAD 2KEY ILLUM Storm Interface	5	-	RFQ	Datasheet	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
88AB2-143 SWITCH KEYPAD 12KEY 0.01A 24V Grayhill Inc.	4	-	RFQ	Datasheet	88	Bulk	Active	Snap Dome	12	3 x 4	Non-Illuminated	Fixed	Polyester Overlay	Matrix	Telephone Format	Black	White	Panel Mount, Front or Rear	Pin Header	-	-40°C ~ 80°C	IP42	-	0.01A @ 24VDC	-
2K041103 SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface	19	-	RFQ	Datasheet	2000	Bulk	Active	Conductive Rubber	4	1 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Arrows	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Rectangular - 82.50mm x 25.50mm	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
GS120203 SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface	7	-	RFQ	Datasheet	GFX	Bulk	Active	Conductive Rubber	12	3 x 4	Non-Illuminated	Interchangeable	Transparent Key Cap	Matrix	Customizable (Sold Separate)	-	Transparent	Panel Mount, Front or Rear	Pin Header	Rectangular - 83.00mm x 64.00mm	-20°C ~ 60°C	IP54 - Dust Protected, Water Resistant	-	0.05A @ 24VDC	-
2K16T103 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	3	-	RFQ	Datasheet	2000	Bulk	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, A ~ C	Gray	Translucent	Panel Mount, Front or Rear	Pin Header	Square - 83.00mm²	-25°C ~ 85°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	Anti-Vandal
EZB2-505003 SWITCH KEYPAD 2KEY ILLUM Storm Interface	13	-	RFQ	Datasheet	Nav-Bar™	Bulk	Active	Conductive Rubber	2	2 x 1	Illuminated	-	Polymer	-	-	-	White	Panel Mount, Front	Cable with Connector	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	-
8616-210023 SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface	4	-	RFQ	Datasheet	SF6000	Box	Active	Conductive Rubber	16	4 x 4	Non-Illuminated	Fixed	Polymer	Matrix	Telephone Format, Function Keys	Black, White	Multiple	Panel Mount, Front or Rear	Pin Header	Rectangular - 97.00mm x 79.00mm	-20°C ~ 60°C	IP65 - Dust Tight, Water Resistant	-	0.05A @ 24VDC	-
EZB6-730003 SWITCH KEYPAD 6KEY ILLUM Storm Interface	4	-	RFQ	Datasheet	Nav-Bar™	Bulk	Active	Conductive Rubber	6	6 x 1	Illuminated	Fixed	Polymer	USB	Arrows, Help Button, Select	Black, White	Multiple	Panel Mount, Front	USB Socket	-	-20°C ~ 70°C	IP65 - Dust Tight, Water Resistant	-	-	Audio Enabled

Total 172 Record«Prev 1 2 3 4 567 8 9 Next»

Category Overview

Keypad Switches Products & Selection Guide

Keypad Switches are widely used in industrial automation, automotive electronics, communication equipment, consumer electronics, new energy systems, and many other electronic applications. We offer products from multiple manufacturers, packages, and specifications to help engineers and buyers compare and source suitable components.

Use the manufacturer, key specification, availability, and Datasheet filters to narrow down the right Keypad Switches. If the exact part is not listed, submit an inquiry and our team can help check stock, lead time, and suitable alternatives.

FAQ

How do I choose the right Keypad Switches?

Start with the required electrical specifications, package, operating temperature, application conditions, and manufacturer preference, then compare availability and lead time.

Can I order based on the stock shown on this page?

Inventory can change with supply conditions. For project or volume requirements, please submit an inquiry so current stock, pricing, and lead time can be confirmed.

What if the exact part number I need is not listed?

Send us the part number and required quantity. We can help source hard-to-find parts and suggest suitable alternatives based on key specifications.

Do you provide Datasheets and technical documents?

Yes. Use the Datasheet links in the product list to view available technical documents. If a document is unavailable, contact us and we can help check it.
