KoreanFixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020FA-1R0MFIXED IND 1UH 11A 11.7 MOHM SMD |
7,336 |
|
 Datasheet
|
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 5.4A | Shielded | 11.7mOhm Max | 20 @ 100kHz | 56MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
VCHA042A-1R0MS6FIXED IND 1UH 8.9A 10.5MOHM SMD |
4,082 |
|
Datasheet
|
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 8.9 A | 6.7A | Unshielded | 10.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
IHLP3232DZER1R0M11FIXED IND 1UH 18.2A 4.63MOHM SMD |
3,436 |
|
Datasheet
|
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18.2 A | 12A | Shielded | 4.63mOhm Max | - | 49MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
IHLP4040DZER470M11FIXED IND 47UH 3.3A 145 MOHM SMD |
3,429 |
|
Datasheet
|
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.3 A | 3A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SRP4020FA-2R2MFIXED IND 2.2UH 8A 23.5 MOHM SMD |
2,737 |
|
Datasheet
|
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 3.8A | Shielded | 23.5mOhm Max | 15 @ 100kHz | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-R47MFIXED IND 470NH 13.2A 6.8MOHM SM |
1,976 |
|
Datasheet
|
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 13.2 A | 10A | Shielded | 6.8mOhm Max | 30 @ 100kHz | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
SPM5030T-1R0MFIXED IND 1UH 10.1A 11.44MOHM SM |
1,341 |
|
Datasheet
|
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 10.1 A | 8.5A | Shielded | 11.44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|

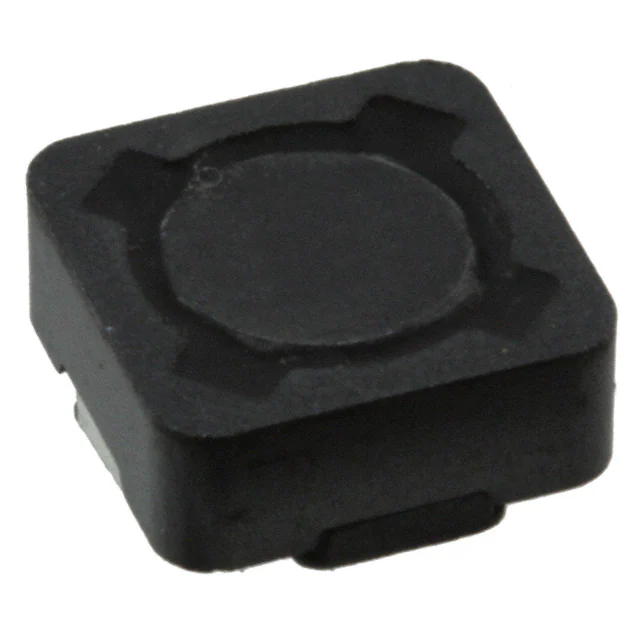

DRA73-470-RFIXED IND 47UH 1.02A 275MOHM SMD |
170 |
|
Datasheet
|
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.02 A | 1.1A | Shielded | 275mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
ECS-MPI4040R4-6R8-RFIXED IND 6.8UH 2.4A 91 MOHM SMD |
39,082 |
|
Datasheet
|
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.4 A | 3.2A | Shielded | 91mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-220-RFIXED IND 22UH 1.3A 316 MOHM SMD |
26,690 |
|
Datasheet
|
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.3 A | 1.8A | Shielded | 316mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
VCHA042A-2R2MS6FIXED IND 2.2UH 5.8A 23MOHM SMD |
15,125 |
|
Datasheet
|
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 5.8 A | 4.5A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
|
ECS-MPI4040R4-1R0-RFIXED IND 1UH 5.7A 17 MOHM SMD |
14,892 |
|
Datasheet
|
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.7 A | 8.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
VCHA042A-4R7MS6FIXED IND 4.7UH 4A 53.8MOHM SMD |
5,992 |
|
Datasheet
|
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 4 A | 3.2A | Unshielded | 53.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
ETQ-P5M470YFMFIXED IND 47UH 2.9A 172 MOHM SMD |
4,714 |
|
Datasheet
|
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.9 A | 4.1A | Shielded | 172mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
VFB4532-510FIXED INDUCTOR 51UH -30% +50% |
3,779 |
|
Datasheet
|
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP3232DZER150M11FIXED IND 15UH 4.9A 65.3MOHM SMD |
2,315 |
|
Datasheet
|
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 4.9 A | 3.7A | Shielded | 65.3mOhm Max | - | 10.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER3R3M11FIXED IND 3.3UH 10.5A 14.9 MOHM |
1,805 |
|
Datasheet
|
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10.5 A | 9.7A | Shielded | 14.9mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
SRP1038A-100MFIXED IND 10UH 7.5A 30 MOHM SMD |
53,386 |
|
Datasheet
|
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLP5050CEER2R2M01FIXED IND 2.2UH 16A 8 MOHM SMD |
22,496 |
|
Datasheet
|
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
|
SRP1038A-220MFIXED IND 22UH 5A 74 MOHM SMD |
22,094 |
|
Datasheet
|
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Category Overview
Fixed Inductors Products & Selection Guide
Fixed Inductors are widely used in industrial automation, automotive electronics, communication equipment, consumer electronics, new energy systems, and many other electronic applications. We offer products from multiple manufacturers, packages, and specifications to help engineers and buyers compare and source suitable components.
Use the manufacturer, key specification, availability, and Datasheet filters to narrow down the right Fixed Inductors. If the exact part is not listed, submit an inquiry and our team can help check stock, lead time, and suitable alternatives.
FAQ
How do I choose the right Fixed Inductors?
Start with the required electrical specifications, package, operating temperature, application conditions, and manufacturer preference, then compare availability and lead time.
Can I order based on the stock shown on this page?
Inventory can change with supply conditions. For project or volume requirements, please submit an inquiry so current stock, pricing, and lead time can be confirmed.
What if the exact part number I need is not listed?
Send us the part number and required quantity. We can help source hard-to-find parts and suggest suitable alternatives based on key specifications.
Do you provide Datasheets and technical documents?
Yes. Use the Datasheet links in the product list to view available technical documents. If a document is unavailable, contact us and we can help check it.
